Heating elements

Trench heating system and skirting heating system

The heating elements are the technical core component of the Variotherm trench heating systems and skirting heating systems and have been specially developed for them. They work highly efficiently and provide optimum heat output.

The heating elements consist of a copper tube ø 18 × 0.5 mm (DIN EN 12 449) with 56 × 78 mm aluminium louvres. These aluminium louvres are corrugated, which means that there is an increased surface area and therefore a greater heat output occurs. That ultimately leads to lower flow temperatures and saves energy during ongoing operations.

The tube and aluminium louvres are connected by a special manufacturing process. This makes them particularly powerful.

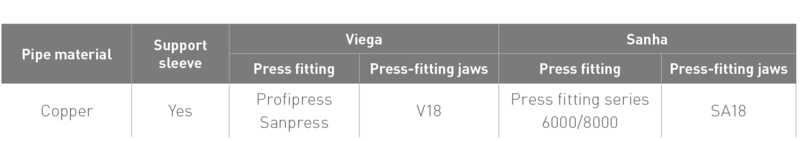

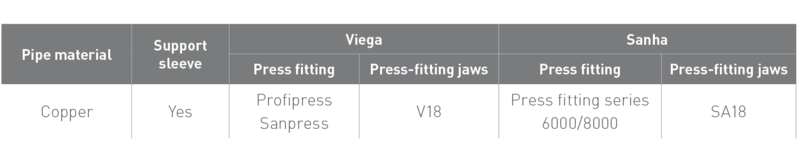

Table for suitable press fittings
