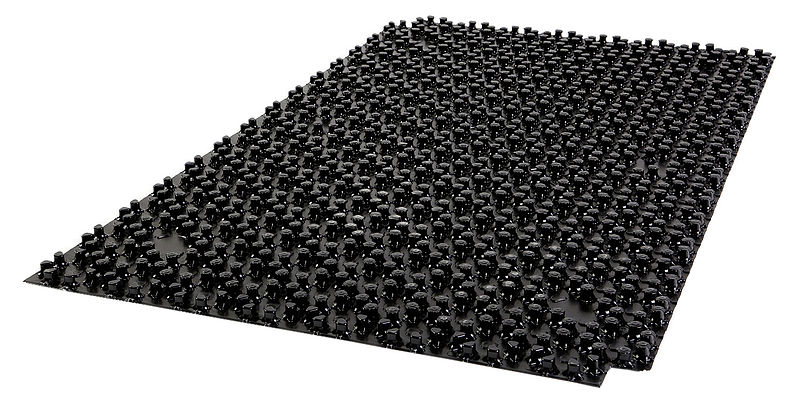

Nop panels

The nop panels serve as a pipe carrier and separating layer between insulation and screed. The panels allow for uniform pipe spacing of at least 50 mm. Bridges raise the VarioProFile pipe from the panel so that the screed can hermetically envelop the pipe.

The first rows of nops are overlapped when installing the panels so that a form-fitting connection is created. Thanks to the high level of surface hardness the panels can be walked on at any time.

Panel characteristics:

  • Dimensions: 1450 × 850 mm,
  • Usable area: 1400 × 800 mm = 1,12 m² (with a 50 mm overlap)
  • Panel thickness including naps: 20 mm
