ModulePanels |105 mm pipe spacing


with 105 mm pipe spacing

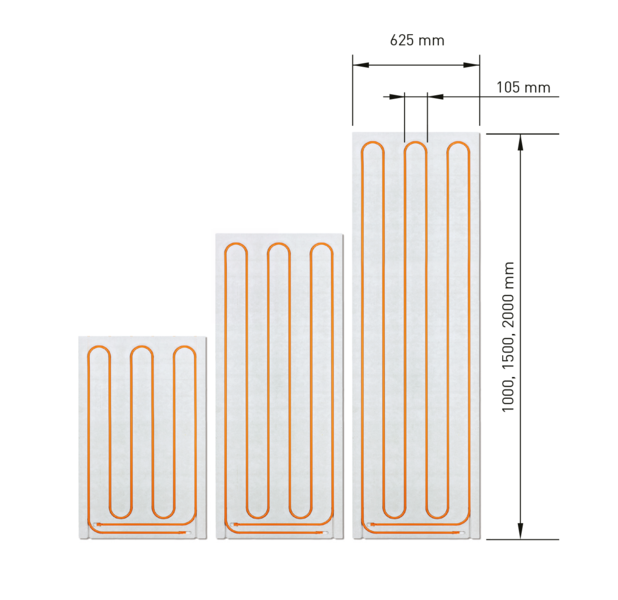

The ModulePanel-Classic is also available for ceilings, with a pipe spacing of 105 mm. They allow lighting concepts to be realised even more easily. The panels are available with a height of 1000, 1500 or 2000 mm and a width of 625 mm.

The ceiling can be laid throughout with the activated ModulePanels with 75 mm pipe spacing, for heating and cooling. Light spots and other installations, such as smoke alarms and loud speakers etc., are installed in the panels with the 30 mm larger pipe spacing.

As an example of how the ceiling can be constructed: Around 90% of the ceiling is laid with the ModulePanel with the standard pipe spacing of 75 mm, and 10% with the new panel with 105 mm. An optimal heating and cooling performance is guaranteed.

Tested: better safe than sorry!

The ModulePanel is climate friendly, environmentally compatible, certified and fire-proof. It meets the highest safety standards and, among others, it has been tested by the Institute for Fire Protection Technology and Safety Research Linz (IBS) as per its fire safety standards EN 1363-1 and EN 1364-1.
Test number: 10111710.

Panel characteristics:

Panel: gypsum fibreboard which has been tested for their healthy building properties

Fire resistance as per DIN EN 13501-1: non-flammable, A2

Identification as per DIN EN 15283-2: GF-I-W2-C1

Thermal conductivity λ: 0.32 W/mK

Apparent density ρK: 1150 ± 50 kg/m3

Water vapour diffusion resistance factor μ: 13


  • With load bearing wall construction the Variotherm ModulePanels must not carry any static ceiling loads and must not be used for building reinforcement.
  • The relative humidity must not exceed 70 % during storage, installation and additional processing of the ModulePanels and during the construction phase and normal use of the building. Wet plaster and wet screed must be applied and have dried before installation of the ModulePanels. The ModulePanels can be used in rooms up to moisture class W3 (ÖNORM B 3407). They are not approved for installation from moisture class W4 (e.g. canteens and shower blocks) upwards.
